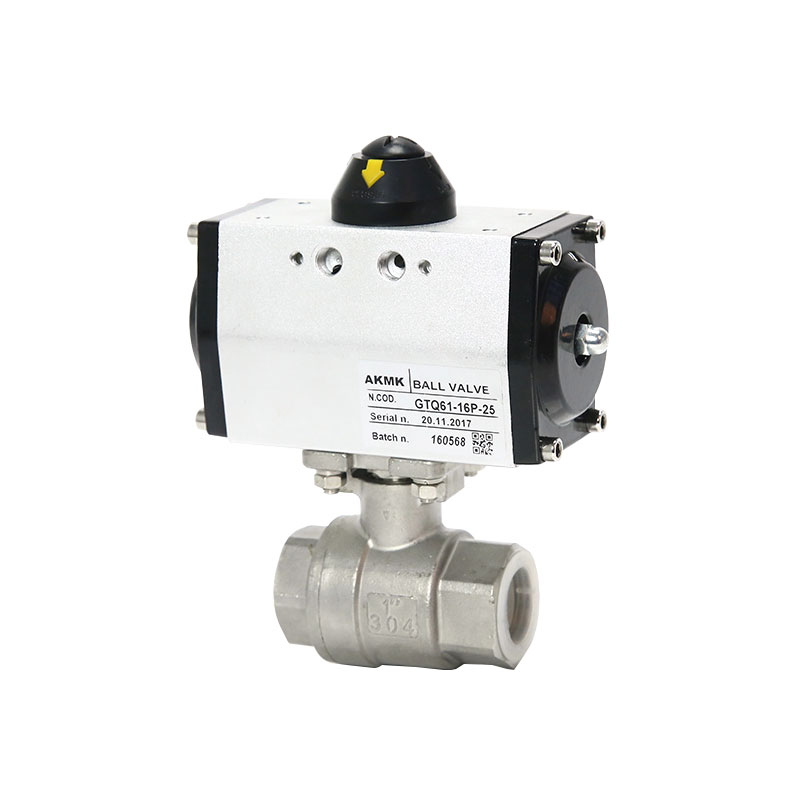

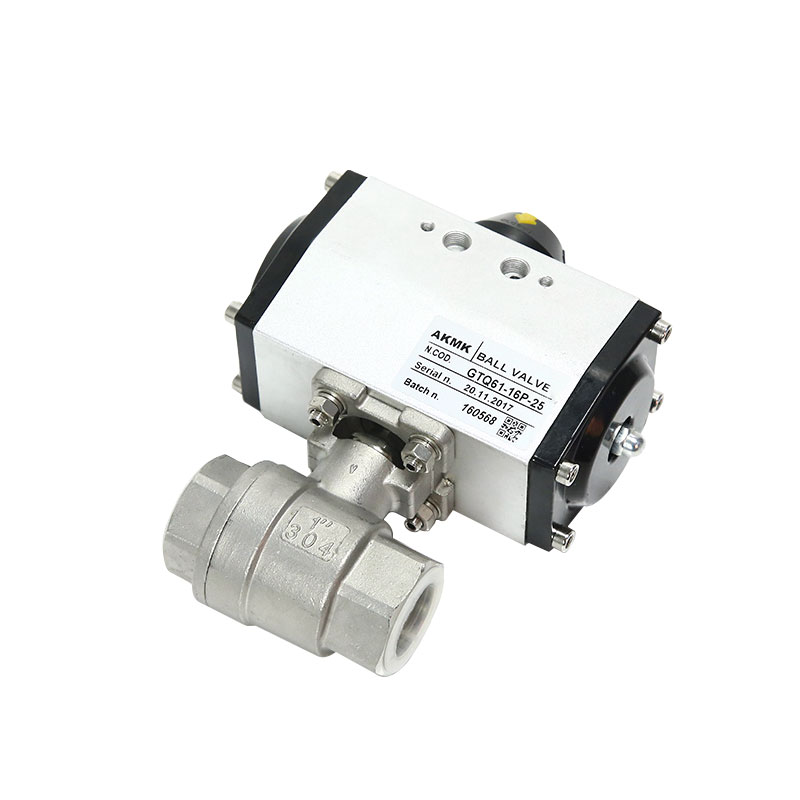

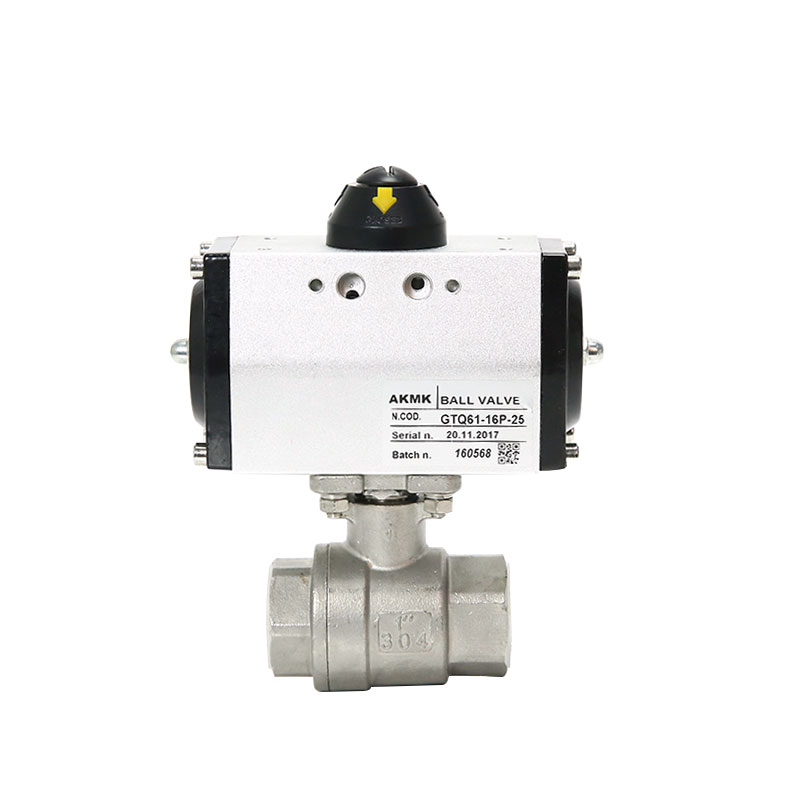

描述
氣動兩片式球閥小巧。它可以快速打開或關閉管道流。閥體由兩部分組成，通道的大小等于連接管的直徑，介質幾乎可以毫無損失地流過它?？蛇x配雙作用和彈簧復位氣動執行器以及各種控制附件。
技術指標
閥體材質：CF8，CF8M，CF3，CF3M，WCB
閥座材料：PTFE / RPTFE，PPL，金屬
可用尺寸：1/4”-8”
連接類型：內螺紋，法蘭
工作壓力：1000PSI；1.6、2.5、4.0、6.4Mpa；150Lb，300Lb，600Lb；10K，20K
工作溫度：-20?+ 120℃-20?+ 300℃
執行器類型：雙作用，單作用（彈簧復位）
執行器材料：鋁合金
執行器配件：電磁閥，空氣調節器，限位開關，定位器，快速排氣閥，手輪
Model | Size(BSP) | Orifice Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
GTQ61-16P-15 | 1/2 | 15 | DA50 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
GTQ61-16P-20 | 3/4 | 20 | DA50 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
GTQ61-16P-25 | 1 | 25 | DA50 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
GTQ61-16P-32 | 1 ? | 32 | DA63 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
GTQ61-16P-40 | 1 ? | 40 | DA63 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
GTQ61-16P-50 | 2 | 50 | DA75 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |

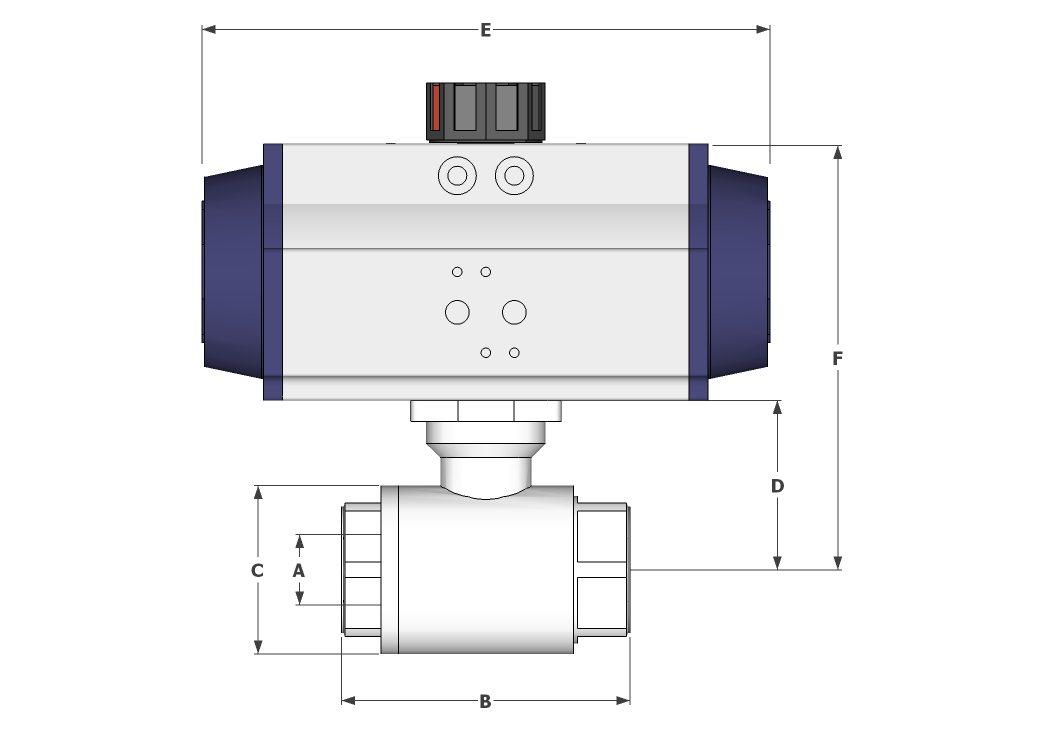

DIMENSIONS
Model | A | B | C | E | F |
GTQ61-16P-15 | 15 | 67 | 34 | 139.5 | 100 |
GTQ61-16P-20 | 20 | 76 | 40 | 139.5 | 102 |
GTQ61-16P-25 | 25 | 90 | 48 | 139.5 | 113 |
GTQ61-16P-32 | 32 | 102 | 60 | 139.5 | 116 |
GTQ61-16P-40 | 40 | 114 | 72 | 139.5 | 158 |
GTQ61-16P-50 | 50 | 138 | 92 | 139.5 | 168 |

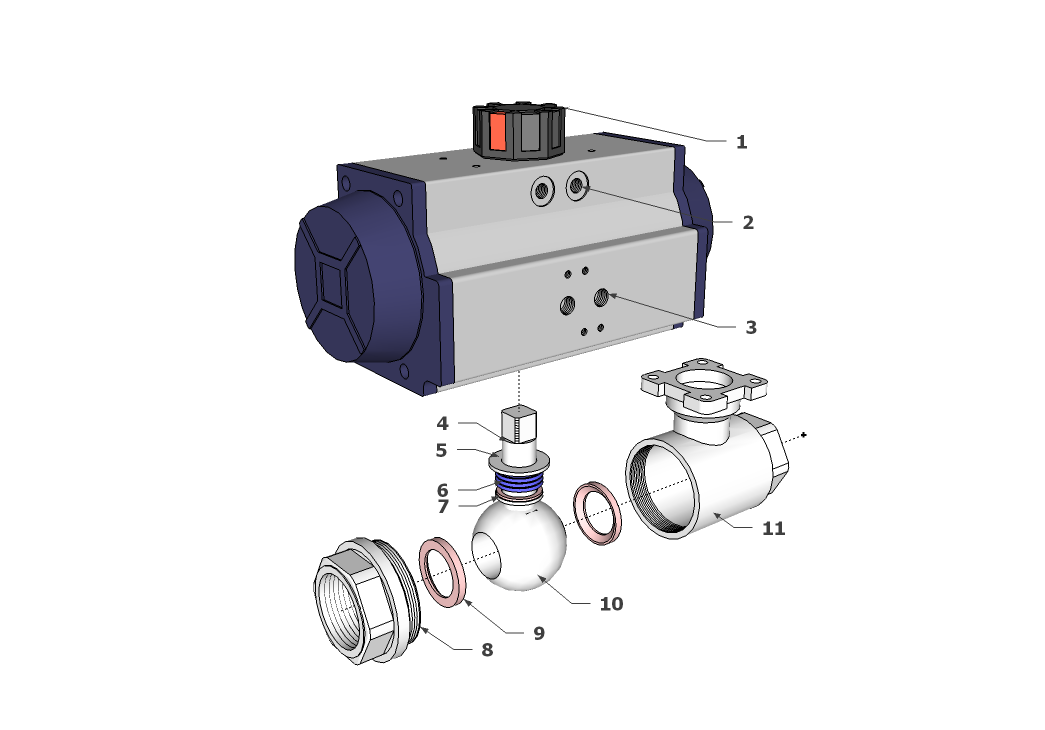

CONSTRUCTION
Number | Part | Material |
1 | Visual Indicator | UV Stabilized Thermoplastic |
2 | Stops | Stainless Steel |
3 | Inlet Ports/Namur Interface | Anodised Aluminium |
4 | Drive | Nickel Plated Brass |
5 | Chevron Seals | PTFE |
6 | Backing O-Ring | Viton |
7 | Thrust Washer | PTFE |
8 | End Piece | Nickel Plated Brass |
9 | Seat | PTFE |
10 | Ball | 316 Stainless Steel |
11 | Body | Nickel Plated Brass |
Size 1/2" to 1 1/2" BSP
Body Nickel Plated Brass
Seat PTFE
Pressure 16 BAR
Temperature -10°C to 100°C
Actuation Double Acting Pneumatic
