Function

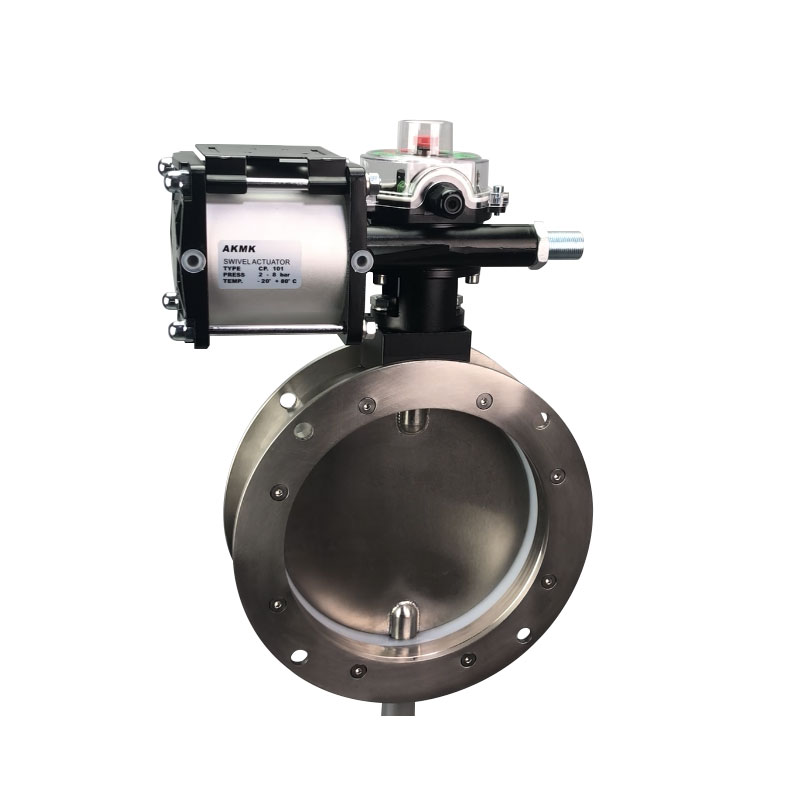

To close silos, hoppers or bins containing powders or granules, VFC Butterfly Valves range among the most widely used equipment worldwide.
What used to be custom-built items for specific applications, VFC has turned into a mass-produced, industrial product with features that allow extremely versatile use.
VFC Butterfly Valves are used in all types of powder and granular material processing plants where interception of gravity-fed or pneumatically conveyed dry materials is required. They are fitted beneath hoppers, bins, silos, screw or other type conveyors, or to intercept pneumatic conveying ducts. Due to their special design and engineering materials used, they represent a particularly cost-effective yet most efficient solution.
Features
V1FC with top flange and beaded bottom section suitable for fixing a flexible sleeve

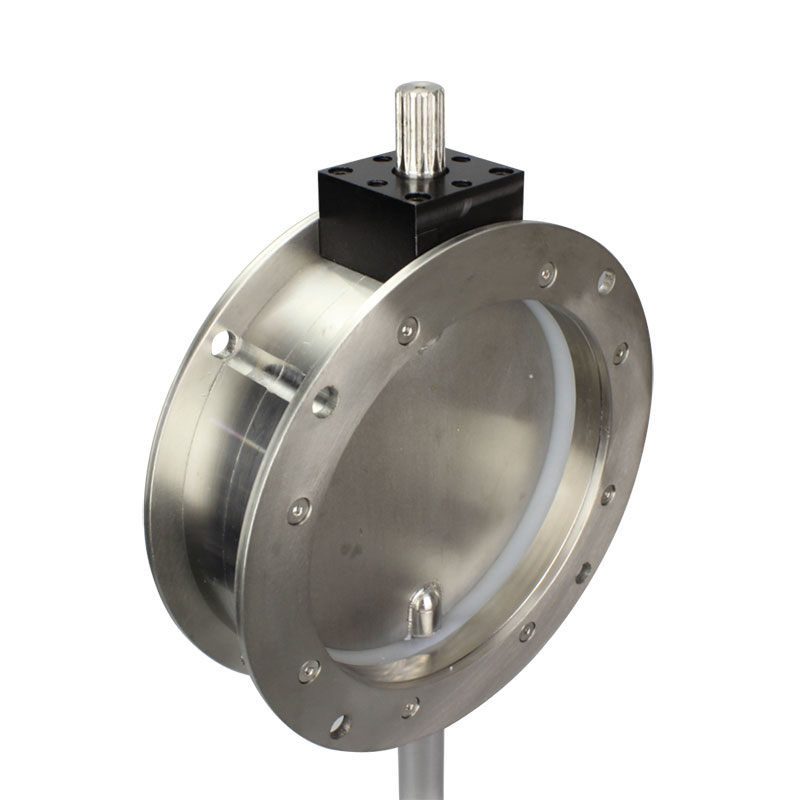

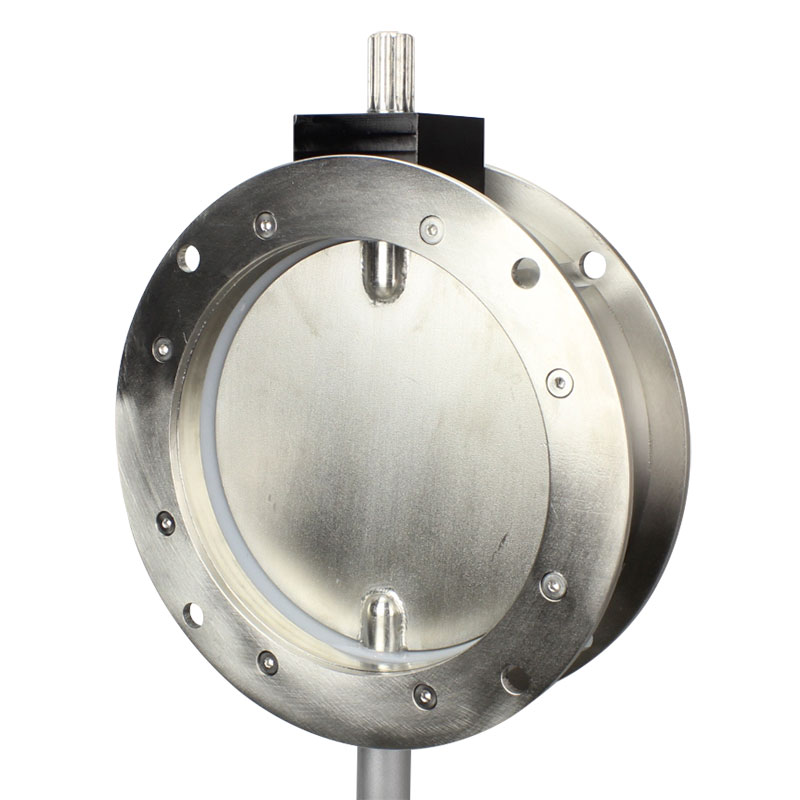

V2FC with identical top and bottom flange
Valve sizes range from 4" to 16" and the DN100-DN400 is available.
Dust tight and pressure-proof up to 0.2 bar (2.9 PSI)
Disc in stainless steel
Seals for standard or food-grade applications
Made up of few components
Used for powders, granules
Lightweight and easy to handle
Benefits
Highly abrasion-resistant
Easy to fit
Time-saving maintenance
Low operating and maintenance costs
Interchangeable discs
Ex-stock delivery
Options
ATEX -certified
Compliant with EN 1935/2004 standards
Food-grade version with stainless steel disc and integral seal
MODEL:V2FC100AS ,V2FC150AS, V2FS200AS ,V2FC250AS, V2FC300AS,V2FC350AS,V2FC400AS,
V1FC100AS ,V1FC150AS, V1FS200AS ,V1FC250AS, V1FC300AS,V1FC350AS,V1FC400AS?
Item # | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | R (mm) | S (mm) | T (mm) | U (mm) | V (mm) | Z (mm) | Weight (Kg) |
V1FC100 | 95 | 180 | 220 | 105 | 250 | 115 | 35 | 22x19 | 220 | 40 | 80 | M12 | 50 | M10 | 4 |
V1FC150 | 150 | 200 | 228 | 163 | 290 | 115 | 35 | 22x19 | 228 | 40 | 80 | M12 | 50 | M10 | 5 |
V1FC200 | 200 | 250 | 278 | 213 | 340 | 115 | 35 | 22x19 | 278 | 40 | 80 | M12 | 50 | M10 | 6.5 |
V1FC250 | 250 | 300 | 328 | 263 | 390 | 115 | 35 | 22x19 | 325 | 40 | 80 | M12 | 50 | M10 | 7.5 |
V1FC300 | 300 | 350 | 378 | 313 | 440 | 115 | 35 | 22x19 | 375 | 40 | 80 | M12 | 50 | M10 | 9 |
V1FC350 | 350 | 400 | 440 | 363 | 530 | 123 | 50 | 28x25 | 440 | 40 | 80 | M12 | N/A | M10 | 16 |
V1FC400 | 400 | 470 | 530 | 413 | 580 | 123 | 50 | 28x25 | 530 | 40 | 80 | M12 | N/A | N/A | 20.5 |
V2FC100 | 95 | 180 | 220 | N/A | 250 | 77 | 35 | 22x19 | 220 | N/A | 80 | M12 | 50 | M10 | 4 |
V2FC150 | 150 | 200 | 228 | N/A | 290 | 77 | 35 | 22x19 | 228 | N/A | 80 | M12 | 50 | M10 | 5 |
V2FC200 | 200 | 250 | 278 | N/A | 340 | 77 | 35 | 22x19 | 278 | N/A | 80 | M12 | 50 | M10 | 6.5 |
V2FC250 | 250 | 300 | 278 | N/A | 390 | 77 | 35 | 22x19 | 325 | N/A | 80 | M12 | 50 | M10 | 7.5 |
V2FC300 | 300 | 350 | 378 | N/A | 440 | 77 | 35 | 22x19 | 375 | N/A | 80 | M12 | 50 | M10 | 9 |
V2FC350 | 350 | 400 | 440 | N/A | 530 | 85 | 50 | 28x25 | 440 | N/A | 80 | M12 | N/A | N/A | 16 |
V2FC400 | 400 | 470 | 530 | N/A | 580 | 85 | 50 | 28x25 | 530 | N/A | 80 | M12 | N/A | N/A | 20.5 |
